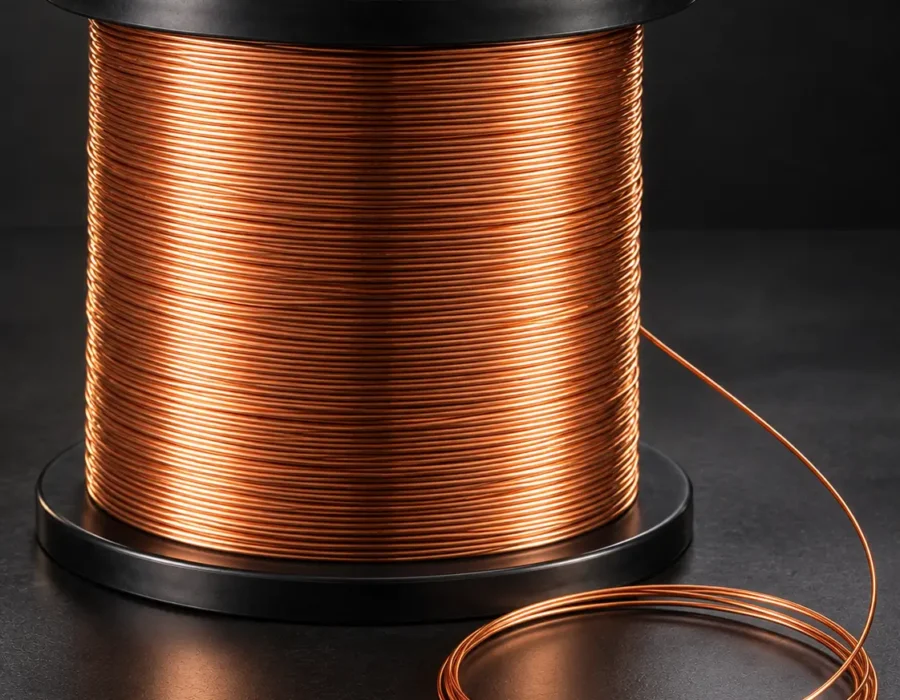

High-temperature enamelled copper winding wire for motors and appliances.
I. K. Electrical supplies enamelled copper winding wire insulated with a PolyAmideImide (AIW) coating, engineered for windings that run at sustained high operating temperatures.
The PolyAmideImide enamel gives the wire a mechanically tough, heat-resistant coating that holds up under overload conditions, making it well suited to industrial motors, auto electricals and home appliance windings running at a temperature index of 220°C (240°C available on request).
Manufactured to IEC 60317-26, our copper winding wire is supplied to OEM motor and pump manufacturers who need consistent electrical and mechanical properties, batch after batch.
Thermal class, enamel coating and applicable international standards by wire series.
| Code | Thermal Class | Material | Enamel Coating | Diameter Range (mm) | GB/T | IEC | NEMA | JIS |
|---|---|---|---|---|---|---|---|---|
| H | 180 | CU | UEW | 0.30-1.60 | 6109.23 | 60317-51 | MW82-C | C3202 |
| H | 180 | AL | UEWA | 0.30-1.60 | 23312 | 60317 | MW82-C | — |
| Code | Thermal Class | Material | Enamel Coating | Diameter Range (mm) | GB/T | IEC | NEMA | JIS |
|---|---|---|---|---|---|---|---|---|
| H | 180 | CU | EIW | 0.30-1.60 | 6109.5 | 60317-8 | MW30-C | — |
| H | 180 | AL | EIW | 0.30-1.60 | 23312.3 | 60317-15 | — | C3202 |
| H | 180 | CU | EIWSB | 0.30-1.60 | 6109.18 | 60317-37 | — | — |
| Code | Thermal Class | Material | Enamel Coating | Diameter Range (mm) | GB/T | IEC | NEMA | JIS |
|---|---|---|---|---|---|---|---|---|
| C | 200 | CU | EI/AIW | 0.30-1.60 | 6109.20 | 60317-13 | MW35-C | — |
| C | 200 | CU | EI/AIWSB | 0.30-1.60 | 6109.19 | 60317-38 | — | — |
| C | 200 | AL | EI/AIW | 0.30-1.60 | 23312.7 | 60317-25 | MW35-A / MW-37A | — |
